Deublin product line: SRD & SRC family

Technical Features* SRD-20 SRD-30 SRD-40 SRC-30 SRC-40
Electric Channels Up to 32 Up to 32 Up to 40 Up to 99 Up to 99
Max. Voltage 640 VAC/DC 640 VAC/DC 640 VAC/DC 640 VAC/DC 640 VAC/DC
Max. Current Up to 10A Up to 25A Up to 60A Up to 25A Up to 60A
Data Transmission 100 Mbps 100 Mbps 100 Mbps 100 Mbps 100 Mbps
Conducting Rings Gold Plated Gold Plated Gold Plated Gold Plated Gold Plated
Brushes up to 25A Monofilament Monofilament Monofilament Monofilament Monofilament
Brushes > 25A - - - - - - Graphite - - - Graphite
Central bore n.a. n.a. With/without n.a. With/without

*multiple options available according applications

Overview of data sheets

SRD-20

Description

Picture SRD-20

The SRD-20 is a reliable, cost-effective, and proven product that provides excellent performance for many applications. It is a very versatile slip ring due to its unique design. This slip ring can transmit both signal and power effectively. Commonly used on packaging, labeling, and filling machines, and in connection with a Rotary Union.



Model Family Industry Application
SRD-20 Multiple Packaging, Automation, Rotary Table

Electrical Features

Electrical Channels up to 32
Voltage, max 640 V AC/DC power, 30 V DC signal
Current, max steady state 10 A power, 1 A signal
Data Communication Speed up to 100 Mbps for signal
Conductor Ring Gold Plated Copper Alloy
Brush Contact Alloy monofilament or polyfilament
Wiring 1 mm² power/0,34 mm² signal
Connection, stator Cordgrip
Connection, rotor Cordgrip

Mechanical Features

Speed, max. 250 rpm
Direction of Rotation Bi-Directional
IP Rating Standard IP55 - Max. IP67
Mounting Orientation Vertical or horizontal
Temperature, operating -20 °C to +80 °C
Temperature, storage -40 °C to +90 °C
Material, housing Anodized Aluminum
Material, rotor Anodized Aluminum
Material, cover Carbon Graphite Filled PA

Versions

SRD-20 (standard) Cordgrip connection both on rotor and stator side, 3 m flying leads
Options Connectors, Mounting Flanges, Painted covers, flying lead length, customized anti-rotation, internal heater for low temperature applications
Drawing SRD-20
SRD-30

Description

Picture SRD-30

The SRD-30 is a reliable, cost-effective, and proven product that provides excellent performance for many applications. It is a very versatile slip ring due to its unique design. This slip ring can transmit both signal and power effectively. Commonly used on packaging, labeling, and filling machines, and in connection with a Rotary Union.



Model Family Industry Application
SRD-30 Multiple Packaging, Automation, Rotary Table

Electrical Features

Electrical Channels up to 32
Voltage, max 640 V AC/DC for power, 30 V DC for signal
Current, max steady state up to 25 A
Data Communication Speed up to 100 Mbps for signal
Conductor Ring Gold Plated Copper Alloy
Brush Contact Alloy monofilament or polyfilament
Wiring up to 4 mm² power/0,34 mm² signal
Connection, stator Cordgrip
Connection, rotor Cordgrip

Mechanical Features

Speed, max. 250 rpm
Direction of Rotation Bi-Directional
IP Rating Standard IP55 - Max. IP67
Mounting Orientation Vertical or horizontal
Temperature, operating -20 °C to +80 °C
Temperature, storage -40 °C to +90 °C
Material, housing Anodized Aluminum
Material, rotor Anodized Aluminum
Material, cover Carbon Graphite Filled PA

Versions

SRD-30 (standard) Cordgrip connection both on rotor and stator side, 3 m flying leads
Options Connectors, Mounting Flanges, Painted covers, flying lead length, customized anti-rotation, internal heater for low temperature applications
Drawing SRD-30
SRD-40

Description

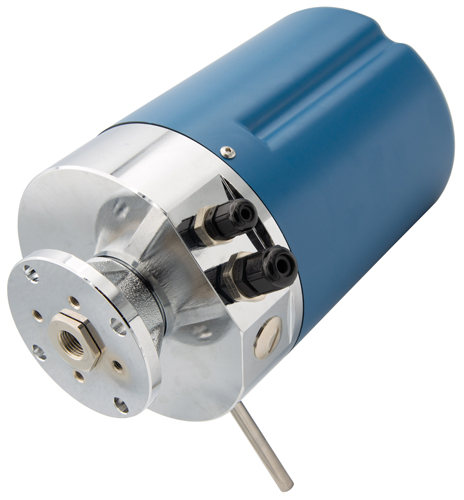

Picture SRD-40

The SRD-40 is a reliable, cost-effective, and proven product that provides excellent performance for many applications. It is a very versatile slip ring due to its unique design. This slip ring can transmit both signal and power effectively. Commonly used on packaging, labeling, and filling machines, and in connection with a Rotary Union.



Model Family Industry Application
SRD-40 Multiple Packaging, Automation, Rotary Table, Wind Turbine

Electrical Features

Electrical Channels up to 39
Voltage, max 640 V AC/DC for power, 30 V DC for signal
Current, max steady state up to 60 A
Data Communication Speed up to 100 Mbps for signal
Conductor Ring Gold Plated Copper Alloy
Brush Contact Alloy monofilament or polyfilament, Carbon
brushes
Wiring 10 mm² power/0,34 mm² signal
Connection, stator Cordgrip
Connection, rotor Cordgrip

Mechanical Features

Speed, max. 250 rpm
Direction of Rotation Bi-Directional
IP Rating Standard IP55 - Max. IP67
Mounting Orientation Vertical or horizontal
Temperature, operating -20 °C to +80 °C
Temperature, storage -40 °C to +90 °C
Material, housing Anodized Aluminum
Material, rotor Anodized Aluminum
Material, cover Carbon Graphite Filled PA

Versions

SRD-40 (standard) Cordgrip connection both on rotor and stator side, 3 m flying leads
Options Connectors, Mounting Flanges, Painted covers, flying lead length, customized anti-rotation, internal heater for low temperature applications
Drawing SRD-40
SRC-30

Description

Picture SRC-30

The SRC-30 is a reliable, cost-effective, and proven product that seeks to provide the consumer with maximum efficiency in terms of modularity.
A slip ring particularly suited for being equipped with fluidic Rotary Unions. This product is suitable for signal or power passage up to a max of 60A. Terminal blocks both on stator and rotor side allow an easy and quick connection/disconnection.



Model Family Industry Application
SRC-30 Packaging - Wind energy Packaging, Automation, Rotary Table

Electrical Features

Max. Composition 99 rings
Voltage, max 880 VAC/DC for power – 190 VDC for signal
Current, max steady state 60 A power, 5 A signal
Data Communication Speed up to 100 Mbps for signal
Conductor Ring Gold Plated Copper Alloy
Brush Contact Alloy monofilament or polifilament/Carbon Brushes
Wiring 4 mm² power/0,34 mm² signal
Connection, stator Connector/Flying leads
Connection, rotor Connector/Flying leads

Mechanical Features

Speed, max. 250 to 1.500 RPM
Direction of Rotation Bi-Directional
IP Rating Standard IP55 - Max. IP68
Mounting Orientation Vertical or horizontal
Temperature, operating -20 °C to +80 °C
Temperature, storage -40 °C to +90 °C
Material, housing Anodized Aluminum
Material, rotor Anodized Aluminum
Material, cover Anodized Aluminum

Versions

SRC-30 (standard) Cordgrip connection both on rotor and stator side, 3 m flying leads
Options Thru Bore Passage, Cord Grips, Mounting Flanges, flying lead length, customized anti-rotation, internal heater for low temperature applications
Drawing SRC-30
Size L H
SRC-30 S 262 153
SRC-30 M 362 253
SRC-30 L 462 353
SRC-40

Description

Picture SRC-40

The SRC-40 is a reliable, cost-effective, and proven product that seeks to provide the consumer with maximum efficiency in terms of modularity.
A slip ring particularly suited for being equipped with fluidic Rotary Unions. This product is suitable for signal or power passage up to a max of 60A. Terminal blocks both on stator and rotor side allow an easy and quick connection/disconnection.



Model Family Industry Application
SRC-40 Packaging - Wind Energy Packaging, Automation, Rotary Table, Wind Turbine

Electrical Features

Max. Composition 99 rings
Voltage, max 880 V AC/DC for power, 190 V DC for signal
Current, max steady state 60 A for power, 5 A for signal
Data Communication Speed up to 100 Mbps for signal
Conductor Ring Gold Plated Copper Alloy
Brush Contact Alloy monofilament or polyfilament/Carbon Brushes
Wiring 10 mm² power/0,34 mm² signal
Connection, stator Connector/Flying leads
Connection, rotor Connector/Flying leads

Mechanical Features

Speed, max. 250 to 1.500 rpm
Direction of Rotation Bi-Directional
IP Rating Standard IP55 - Max. IP68
Mounting Orientation Vertical or horizontal
Temperature, operating -20 °C to +80 °C
Temperature, storage -40 °C to +90 °C
Material, housing Anodized Aluminum
Material, rotor Anodized Aluminum
Material, cover Anodized Aluminum

Versions

SRC-40 (standard) Cordgrip connection both on rotor and stator side, 3 m flying leads
Options Thru Bore Passage, Cord Grips, Mounting Flanges, flying lead length, customized anti-rotation, internal heater for low temperature applications
Drawing SRC-40
Size L H
SRC-40 S 262 153
SRC-40 M 362 253
SRC-40 L 462 353

These series includes additional models. We look forward to hearing from you for further information.
